Architectural Insulated Glass Units(double glazed units):

Introduction of Morn double glazed units/Insulated glass

Insulated glass,also named insulated double glazing,double glazed panels,or double glazed units,it’s made with 2 lites of single piece glass,clear/tinted/low-E coated/laminated etc and spacer(aluminium,steel,warm edge) ,as well as other accessories(desiccant,silicon)to create a insulated structure glass.

The air space between 2 piece glass will increase the thermal insulation performance of the glass and decrease the overall glass U value from 5.84W/m2.K to below 2W/M2.K.When filling argon inside the glass,and using triple glazed units with 2 piece low-E glass,the Uvalue can decrease once agan to Min 0.6W/M2.K.

Insulated glass is widely used in modern architectural glass facade,unitized glass curtain wall,facade cladding to maximum the energy saving performance of the glass.

Architectural double glazed units/insulated glass

Features:

♦ Acoustic. IGU Reduce at least 30Dbs noise across the glass.Laminated insuated glass with professional sound accoustic PVB film,the reduced noise can be over 40Dbs.
♦ Good thermal insulation: Monolithic glass U value is 5.2W/M2.K,while U value of IGU can reach 2.8W/m2.k, if high performance low e coatings(for example,solar control low e,Sunguard coated glass) been applied, U value can decrease to below 1W/m2.K.

♦ Long lifetime:Insulated glass with structural silicon sealant warranty time is 10 years,actually the IGU lifetime can reach 20-50 years.

♦ Low dew point: IGU dew point can reach -40℃.In colad arease,especially Canada,North European countries,the insulated glass create excellent thermal insulation effect without sacrfising the light transmittance.

Glass performance data:

Morn offers various low-E coatings ,from single silver low-E,double silver low-E and triple silver low-E,whatever glass performance you want on your glass,especially Solarban 60,Solarban 70,solarban 90，Xtreme 70/33,the world most popular low-E coatings,we can find matched low-E products in China.Welcome contact us once you got any questions:

Lean more:Morn-Coated glass performance data

Production capability:

Cases

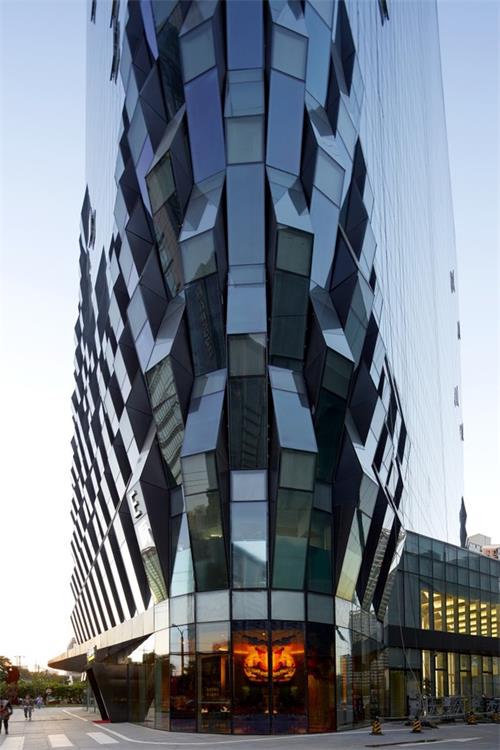

Solar-control-coated-Glass

Solarban-Glass-Facade

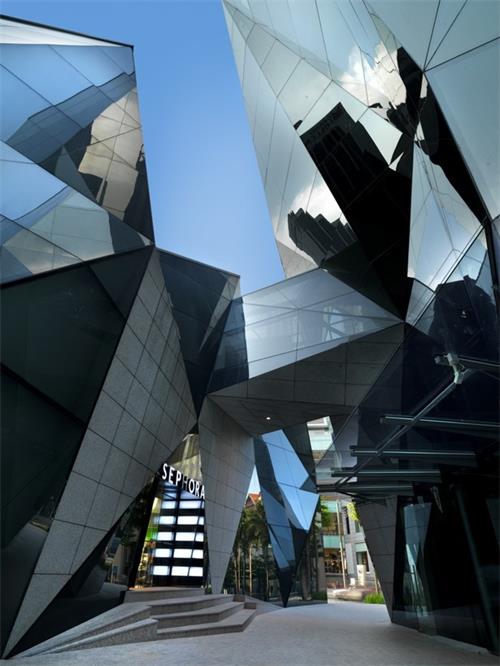

Guardian-Sunguard-Glass

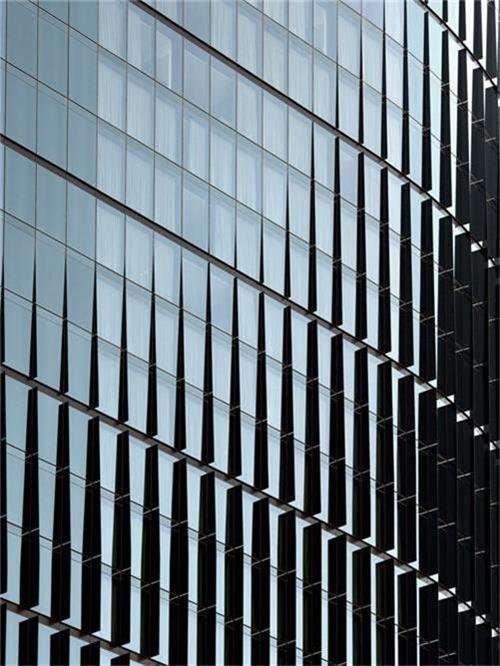

Unitized-aluminium-facade

Morn work with reputable China insuated glass suppliers,manufacturers and offer the highest quality insulated glass with single/double/triple silver low-E coatings.

Download this article here:Architectural-double-glazed-units insulated-glass
